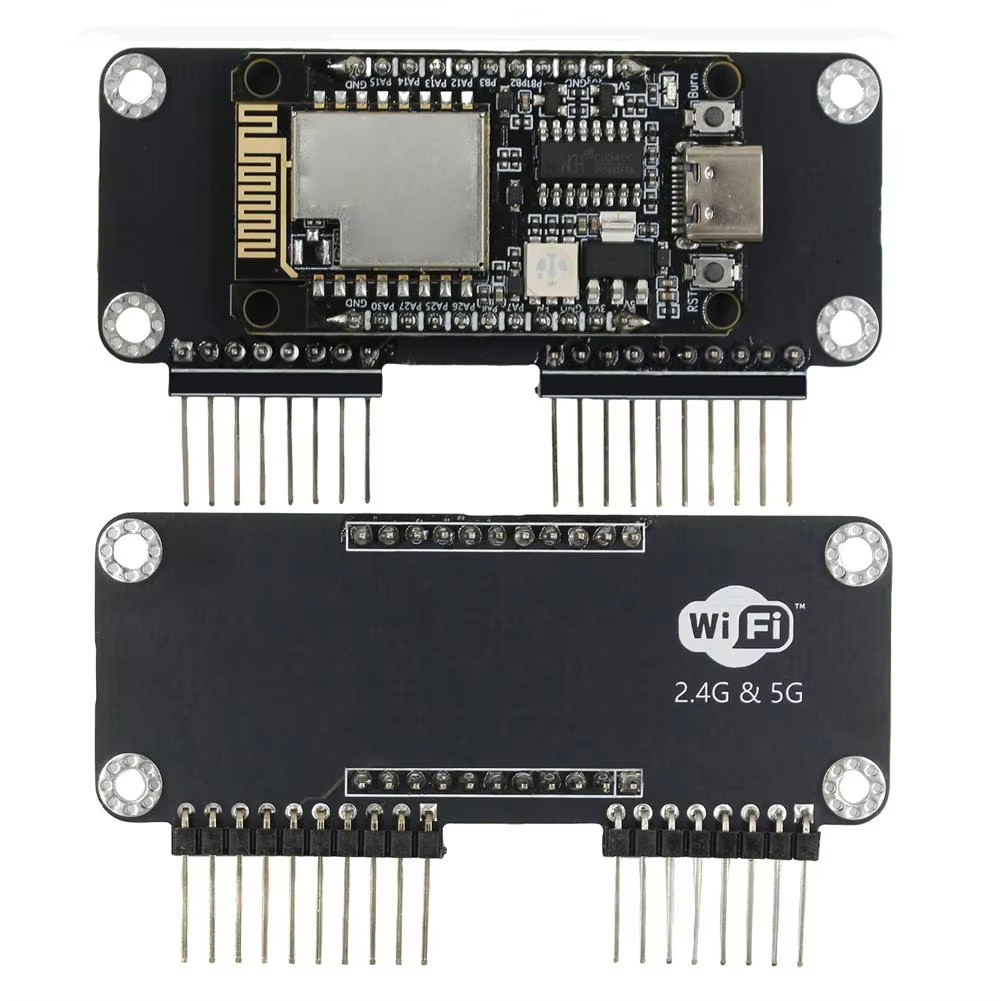

ESP32 Dual Band WiFi Dev Board 2.4G/5G for Flipper (BW16-Kit)
Upgrade to a true dual-band WiFi development board for Flipper projects. This BW16-Kit module supports 2.4GHz + 5GHz WiFi scanning with an ESP32-based platform, BLE 5.0 support, and an open development workflow for Arduino/PlatformIO.
Key Features
• Dual-Band WiFi: 802.11 a/b/g/n (2.4GHz + 5GHz)
• Real-time 5GHz signal scanning with dynamic strength display
• ESP32-based dev board with open API for secondary development
• BLE 5.0 supported
• Onboard PCB antenna
• WPA2 compatible (KRACK defense firmware pre-installed)
Specifications
• Development Board Model: BW16-Kit
• Compatible Module: BW16
• WiFi Standards: 802.11a/b/g/n
• Spectrum Range: 2400–2483.5MHz / 5180–5825MHz
• Transmit Power (max): 2.4GHz up to 16dBm / 5GHz up to 14dBm
• Bluetooth: BLE 5.0
• Security: AES / DES / SHA
• Flash: 4MB
• Power Supply: 5V, 500mA
• Operating Temperature: -40°C to 85°C
Compatibility
• Designed for Flipper development use
• Great for ESP32 WiFi + BLE projects and dual-band scanning workflows
What's Included
• 1 × Dual Band WiFi Expansion Board Module (BW16-Kit)
• 1 × Type-C Cable
Important Notes
• This is a development/expansion board for compatible projects.
• Use responsibly and in accordance with local laws and network permissions.
